NSFState Class Reference

Represents a state machine state. More...

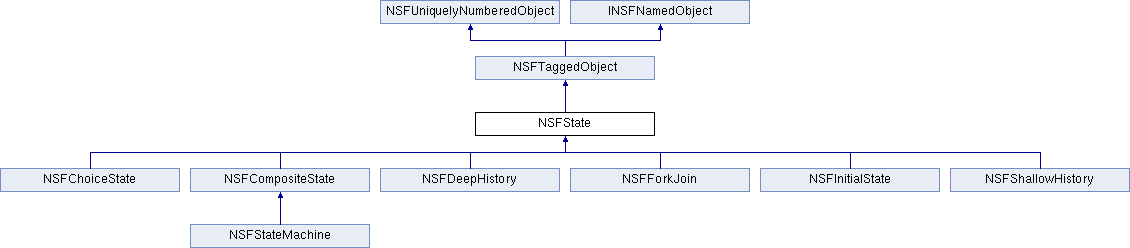

Inheritance diagram for NSFState:

Public Member Functions
	NSFState (NSFString name, NSFRegion parentRegion, NSFVoidAction< NSFStateMachineContext > entryAction, NSFVoidAction< NSFStateMachineContext > exitAction)
	Creates a state. More...
	NSFState (NSFString name, NSFCompositeState parentState, NSFVoidAction< NSFStateMachineContext > entryAction, NSFVoidAction< NSFStateMachineContext > exitAction)
	Creates a state. More...
bool	isActive ()
	Indicates if the state is currently active. More...
virtual bool	isInState (NSFState state)
	Indicates if the specified state is active, i.e. is "in" the specified state. More...
virtual bool	isInState (NSFString stateName)
	Indicates if the specified state is active, i.e. is "in" the specified state. More...
Public Member Functions inherited from NSFTaggedObject
	NSFTaggedObject (NSFString name)
	Creates an object with a unique id and a name. More...
Public Member Functions inherited from NSFUniquelyNumberedObject
	NSFUniquelyNumberedObject ()
	Creates a uniquely numbered object. More...
bool	isSameObject (NSFUniquelyNumberedObject other)
	Checks if this object is the same as another object. More...

Public Attributes
NSFVoidActions < NSFStateMachineContext >	EntryActions = new NSFVoidActions<NSFStateMachineContext>()
	Actions to be executed whenever the state is entered. More...
NSFVoidActions < NSFStateMachineContext >	ExitActions = new NSFVoidActions<NSFStateMachineContext>()
	Actions to be executed whenever the state is exited. More...

Properties
bool	LogEntry [get, set]
	Gets or sets the flag indicating if trace logging is enabled or disabled for the state. More...
virtual NSFStateMachine	TopStateMachine [get]
	Gets the top state machine encompassing the state. More...
Properties inherited from NSFTaggedObject
NSFString	Name [get, set]
Properties inherited from NSFUniquelyNumberedObject
NSFId	UniqueId [get]
	Gets or sets the unique id of the object. More...
Properties inherited from INSFNamedObject
NSFString	Name [get]
	Gets the name of the object. More...

Additional Inherited Members
Static Public Member Functions inherited from NSFUniquelyNumberedObject
static NSFId	getNextUniqueId ()
	Gets the next unique id. More...

Detailed Description

Represents a state machine state.

This class is used by the North State Framework as a base class for all state types. It is rarely used by external applications. They should use NSFCompositeState rather than NSFState, for greater flexibility and extensibility.

Constructor & Destructor Documentation

NSFState	(	NSFString	name,
		NSFRegion	parentRegion,
		NSFVoidAction< NSFStateMachineContext >	entryAction,
		NSFVoidAction< NSFStateMachineContext >	exitAction
	)

Creates a state.

Parameters

name	The name of the state.
parentRegion	The parent region of the state.
entryAction	The actions to be performed upon entry to the state.
exitAction	The actions to be performed upon exit of the state.

NSFState	(	NSFString	name,
		NSFCompositeState	parentState,
		NSFVoidAction< NSFStateMachineContext >	entryAction,
		NSFVoidAction< NSFStateMachineContext >	exitAction
	)

Creates a state.

Parameters

name	The name of the state.
parentState	The parent state of the state.
entryAction	The actions to be performed upon entry to the state.
exitAction	The actions to be performed upon exit of the state.

Member Function Documentation

bool isActive

(

)

Indicates if the state is currently active.

Returns

True if the state is active, otherwise false.

When this method returns true, the state machine is said to be "in" this state.

virtual bool isInState ( NSFState  state )

virtual

Indicates if the specified state is active, i.e. is "in" the specified state.

Parameters

state

State in question.

Returns

True if the specified state is active, otherwise false.

Reimplemented in NSFCompositeState.

virtual bool isInState ( NSFString  stateName )

virtual

Indicates if the specified state is active, i.e. is "in" the specified state.

Parameters

stateName

Name of state in question. Assumes unique names.

Returns

True if the specified state is active, otherwise false.

Reimplemented in NSFCompositeState.

Member Data Documentation

NSFVoidActions<NSFStateMachineContext> EntryActions = new NSFVoidActions<NSFStateMachineContext>()

Actions to be executed whenever the state is entered.

NSFVoidActions<NSFStateMachineContext> ExitActions = new NSFVoidActions<NSFStateMachineContext>()

Actions to be executed whenever the state is exited.

Property Documentation

bool LogEntry

getset

Gets or sets the flag indicating if trace logging is enabled or disabled for the state.

If this flag and the state machine's logging enabled flag are set true, then entry into the state is logged in the trace log.

virtual NSFStateMachine TopStateMachine

get

Gets the top state machine encompassing the state.

Returns

The top state machine.
